Pneumatic atomizers

Stainless steel pneumatic atomizers for the application of disinfectants.

Designed for professional sanitizing in the food, poultry and livestock sectors through fine product atomization.

Stainless steel AISI 316 / AISI 304 Max pressure 8 bar PED 2014/68/EU Made in Italy

How it works

The pneumatic atomizer transforms the sanitizing liquid into a dry mist of very small particles, allowing uniform product distribution even on surfaces that are difficult to reach.

It is a suitable solution for sanitizing operations in the food, industrial, livestock and civil sectors, where fine and controlled atomization is required.

Fine mist 15 / 20 µm 2 atomizing nozzles Recommended pressure 1–6 bar Pneumatic operation

Composed of

stainless steel tank
level indicator
2 adjustable atomizing nozzles
sanitizer adjustment valve
drain / washing valve
safety valve calibrated at 8 bar
air pressure regulator

Important

Always check the compatibility of the detergent with the materials of the atomizer and consult the safety data sheet of the liquids used. Do not use with thinners, explosive or corrosive liquids.

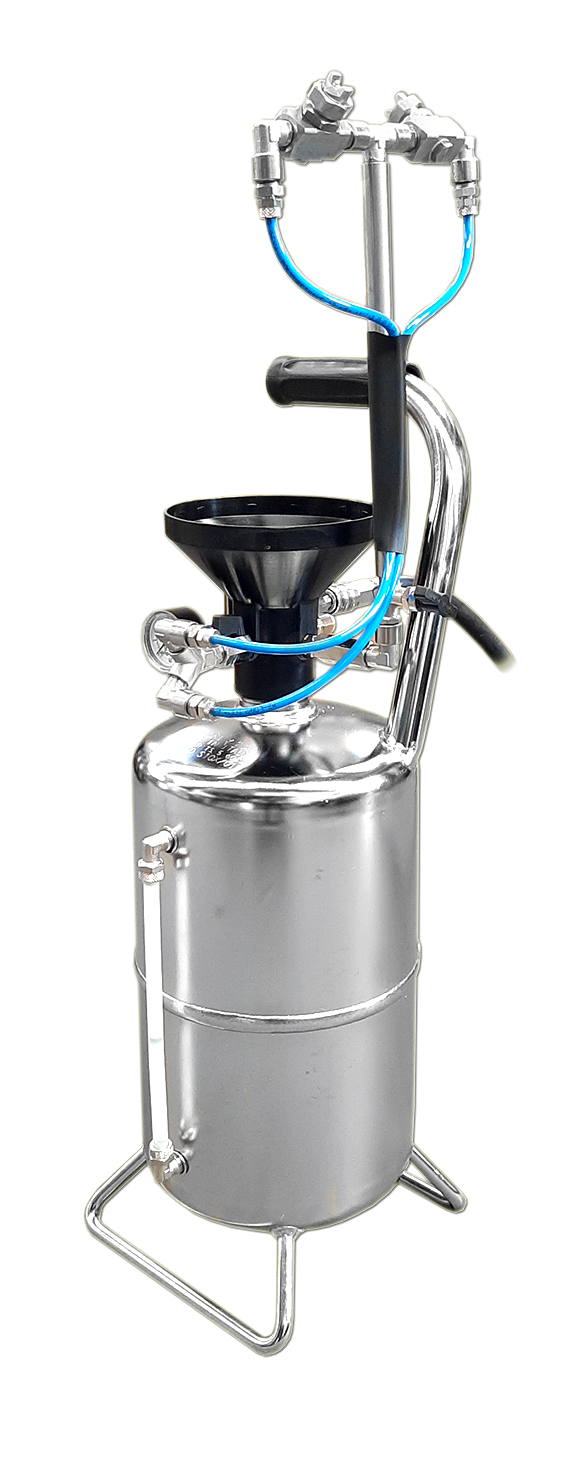

NBZ10XF

10 litres • AISI 316 stainless steel • pneumatic atomizer

Capacity: 10 L AISI 316 stainless steel Max 8 bar 2 adjustable nozzles PED 2014/68/EU Made in Italy

Compact model for atomizing and sanitizing operations in professional environments. The AISI 316 stainless steel structure ensures high corrosion resistance.

Material	AISI 316 stainless steel
Capacity	10 L
Recommended pressure	1 – 6 bar
Indicative air consumption	160 l/min at 3 bar
Maximum pressure	8 bar
Dimensions	24 × 24 cm • H 80 cm
Weight	8.5 kg

NBZX25F

24 litres • AISI 304 stainless steel • pneumatic atomizer

Capacity: 24 L AISI 304 stainless steel Max 8 bar 2 nozzles PED 2014/68/EU Made in Italy

Version with greater capacity, suitable for longer use and larger surfaces. The trolley with wheels makes handling easier in professional applications.

Material	AISI 304 stainless steel
Capacity	24 L
Recommended pressure	1 – 6 bar
Indicative air consumption	160 l/min at 3 bar
Maximum pressure	8 bar
Dimensions	29 × 36 cm • H 102 cm
Weight	11 kg

Comparison table

Features	NBZ10XF	NBZX25F
Material	AISI 316 stainless steel	AISI 304 stainless steel
Operation	Pneumatic	Pneumatic
Capacity	10 litres	24 litres
Recommended pressure for sanitizing	1 – 6 bar	1 – 6 bar
Indicative air consumption (at 3 bar)	160 l/min	160 l/min
Indicative sanitizer consumption (at 3 bar)	13.5 m3/min	13.5 m3/min
Maximum pressure	8 bar	8 bar
Dimensions	24 cm × 24 cm • H = 80 cm	29 cm × 36 cm • H = 102 cm
Weight	8.5 kg	11 kg
